Amada DUOS - Twin Set Design For Light-Duty Bandsaw Machines
For purchase information click on product "Name" link above.
Product Specifications & Information:
The DUOS 9/11 pitch blade was developed exclusively for the light-duty bandsaw machine.
The twin set design prevents tooth stripping and chipping when cutting structural shapes while expanding the application range to include solid materials
to full capacity. DUOS has the ability to act as a conventional 5/7 pitch utilizing only the "A" teeth when cutting solid material. DUOS uses both "A"

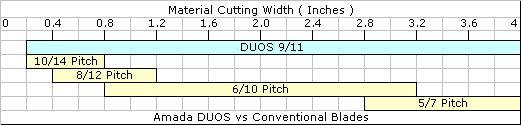

& "B" teeth when cutting thin-wall structural tubing and shapes providing the performance qualities of a conventional 10/14 pitch (see chart below). For optimum results,
Amada recommends limiting the size of solid materials to be cut through a range of 4". DUOS is produced with the highest quality backing material with M-42 edge
strip assuring the longest possible blade life.
• Matrix / M-42 High speed steel edge with 8% cobalt (HRC 67/68)
• 9/11 Pitch twin set / hi-lo variable positive rake tooth form
• Long life in wide range of cutting applications
• Requires no time consuming break-in period
• Enhances performance of light-duty bandsaws
• Bundles, Structurals, Thin / Thick Wall Tubing & Solids
• Mild Steels, Aluminum Alloys, Copper Alloys
Product Availability
| Blade Width |
Thickness |
9/11 Pitch |
| 1/2" |
.020 |
Variable Positive Rake |
| 1/2" |
.025 |
Variable Positive Rake |
| 1/2" |
.035 |
Variable Positive Rake |
| 3/4" |
.035 |
Variable Positive Rake |
| 1" |
.035 |
Variable Positive Rake |
| 1 1/4" |
.042 |
Variable Positive Rake |
